gas turbine engine jet


nearly....all the commercial aircraft are generate powered by gas turbine engine.....major part of the engine is also gas turbine

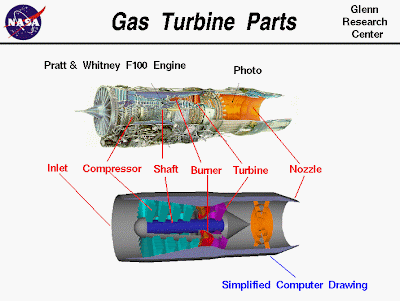

benda-benda yg very important adalah...fan, combustor, high pressure turbine, low pressure turbine, diffuser, combustion chamber, nozzle...sume ni bergantung pada jenis engine gak....



nozzle after the combustion.....

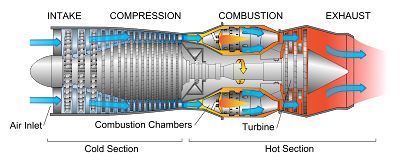

example gas turbine engine...



ni utk fighter jet nye...

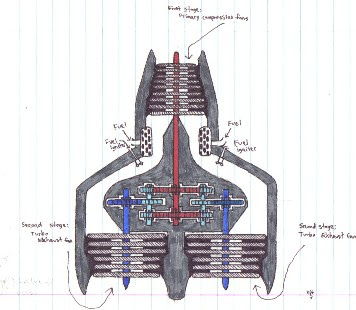

dual combustion gas turbine engine






f-16 after burner....





byk sgt jenis engine ni...antaranye,

turboprops

waterjets

turbojets

turbofans

rockets

ramjets

pulsejets

pumpjets





In general, most jet engines are internal combustion







video
